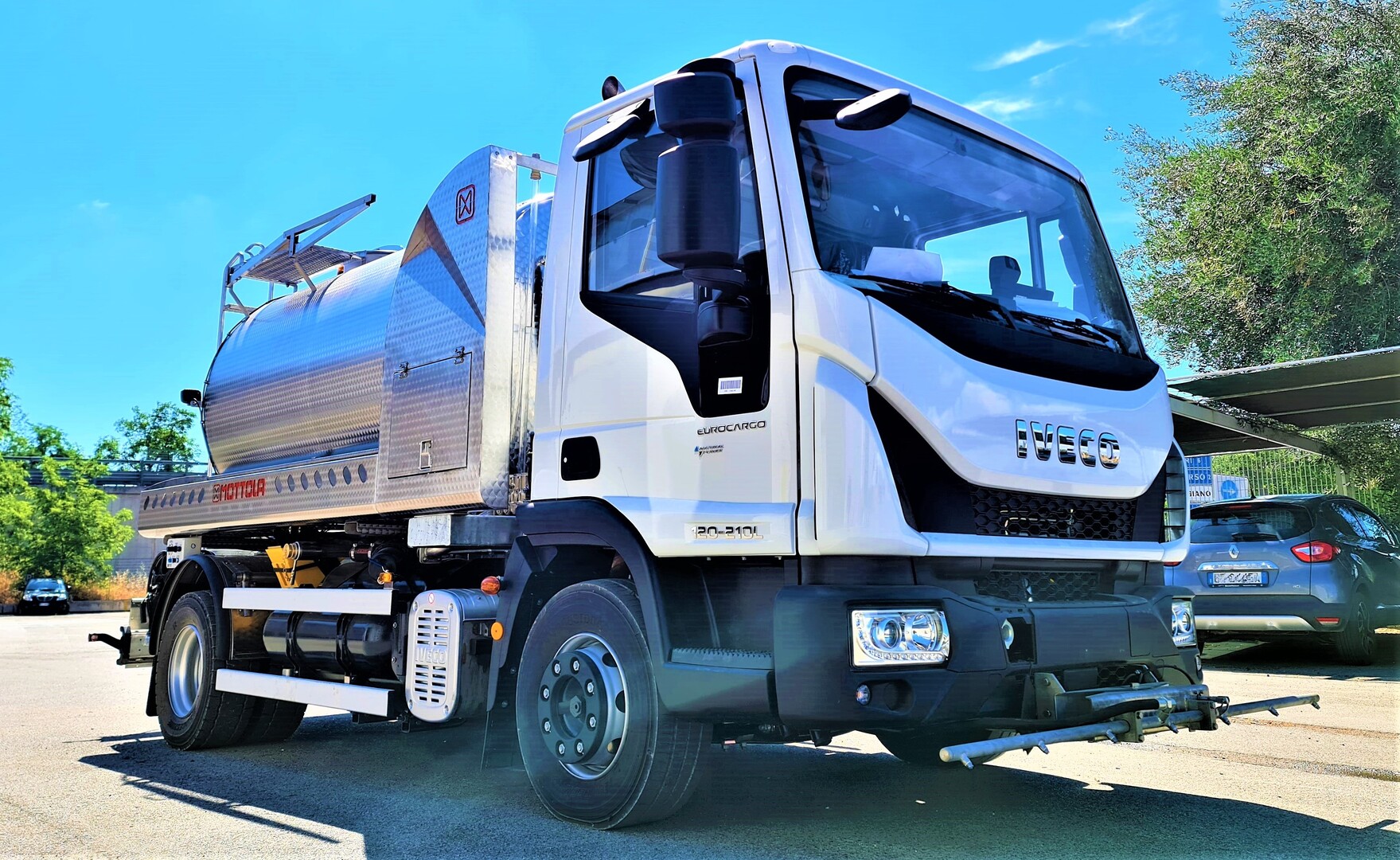

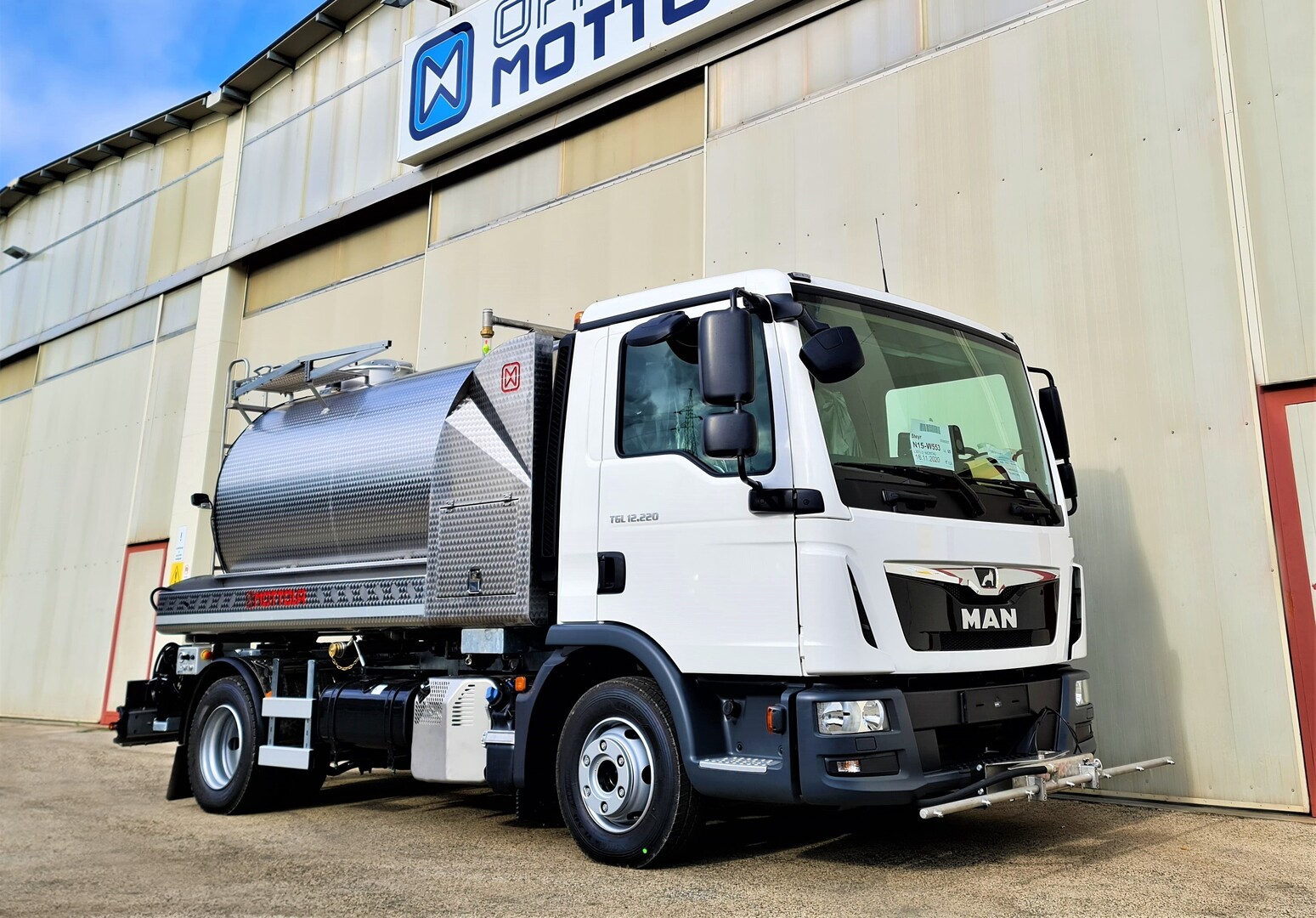

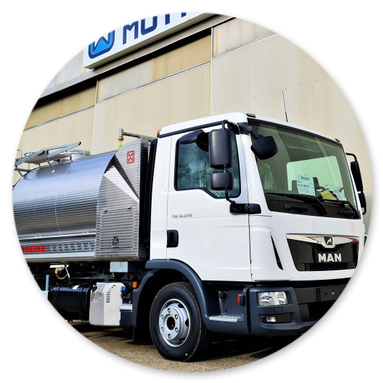

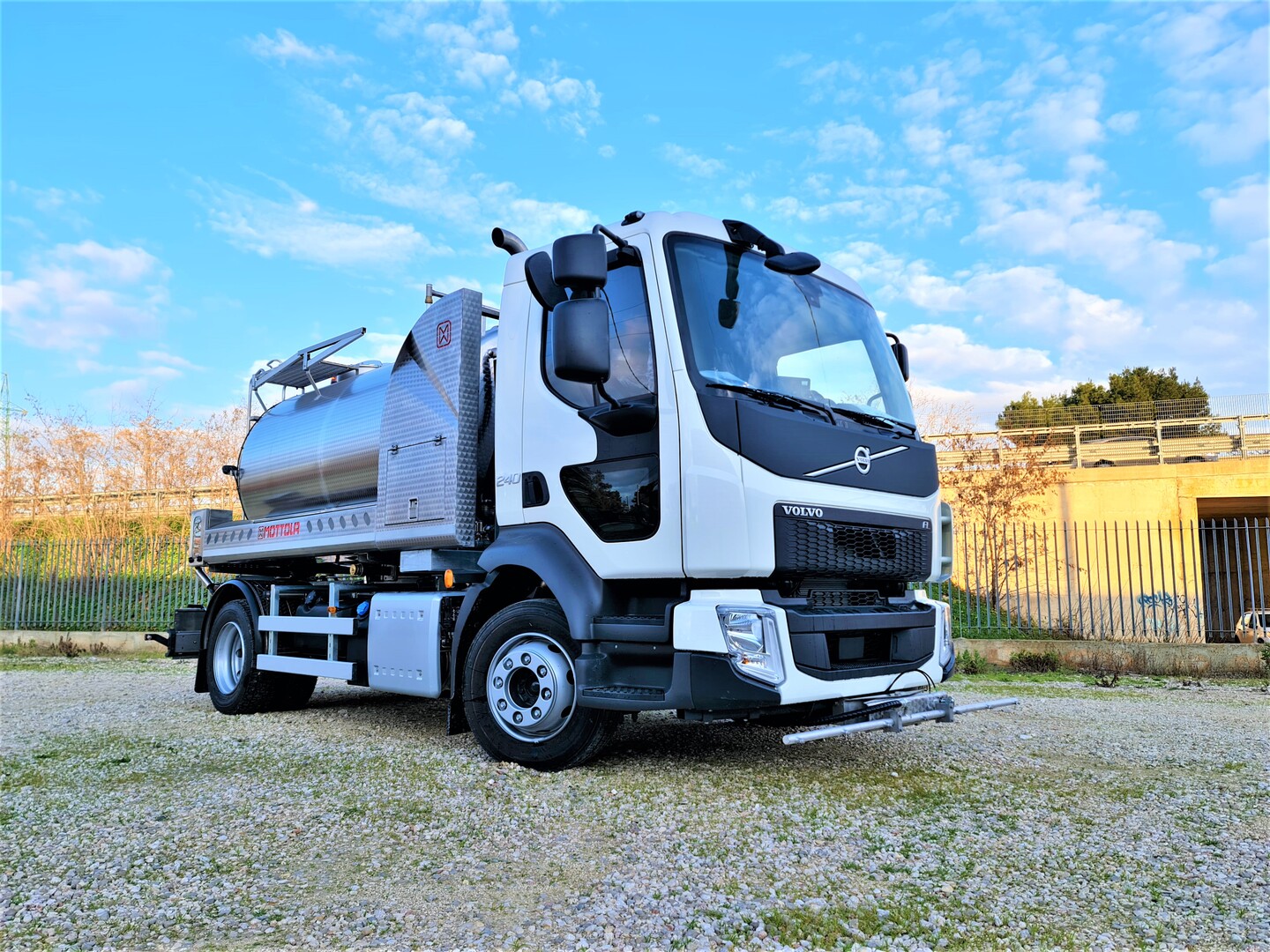

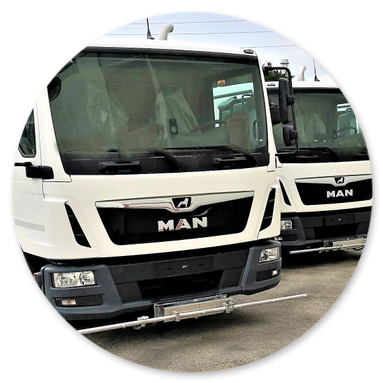

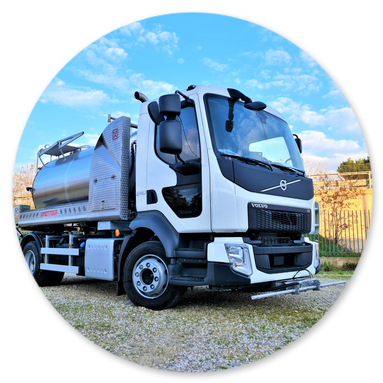

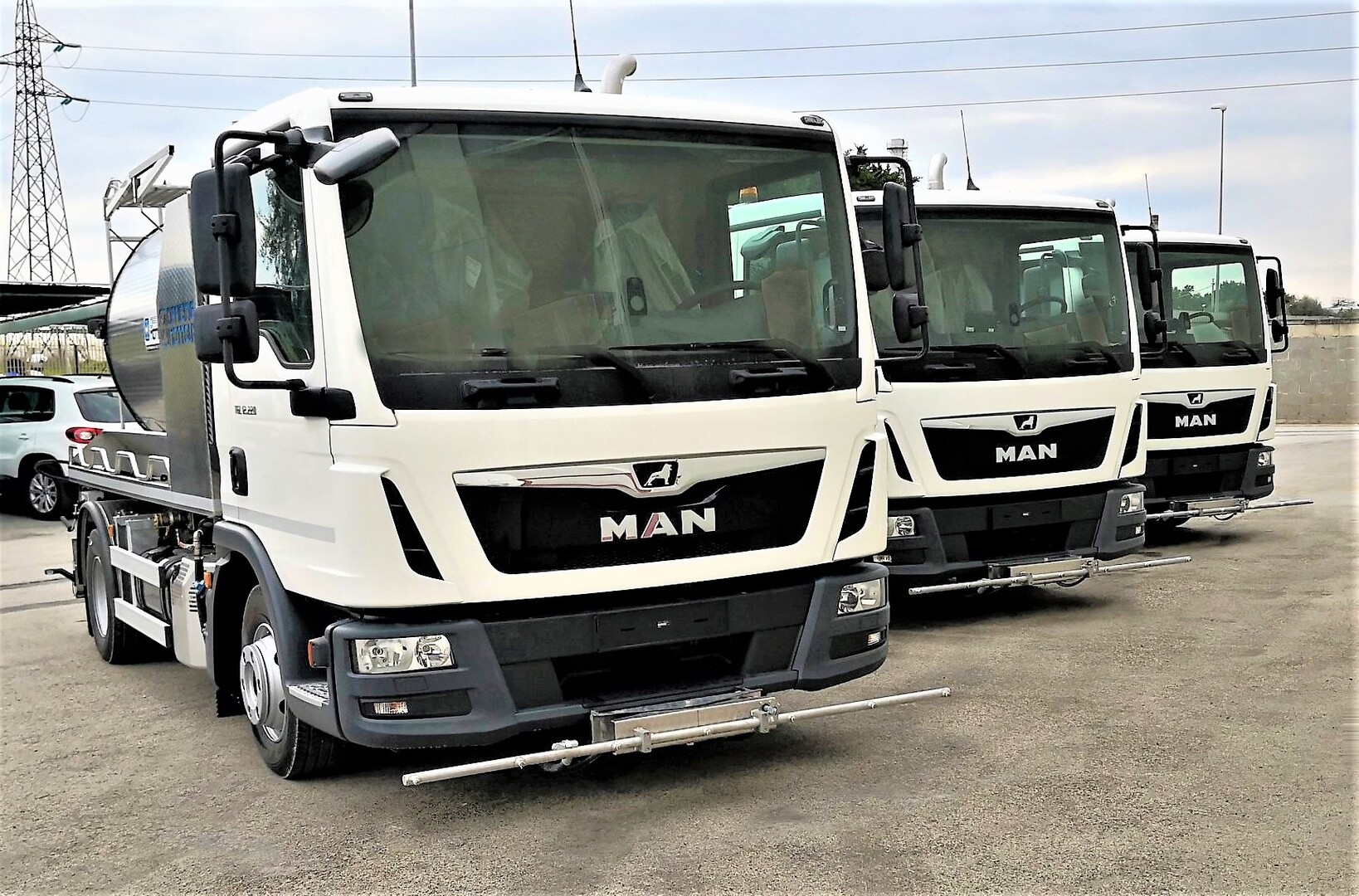

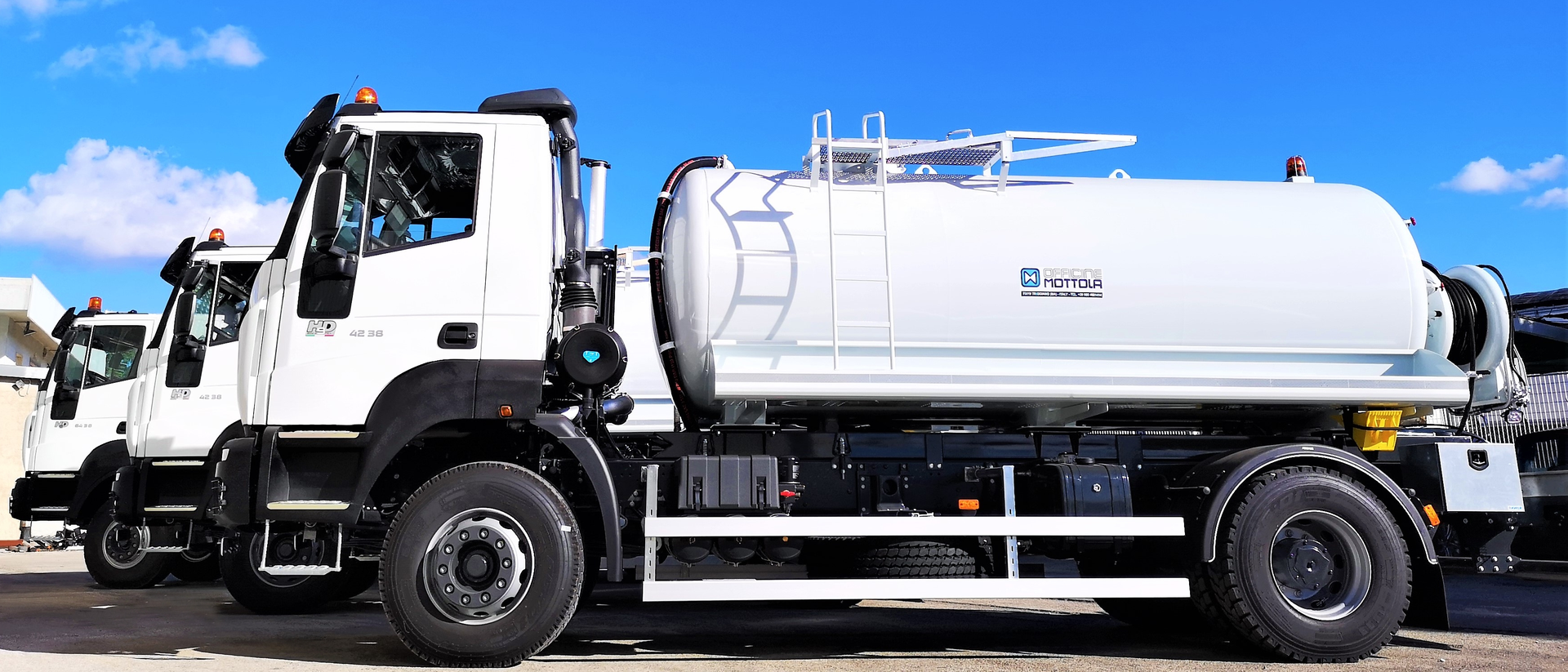

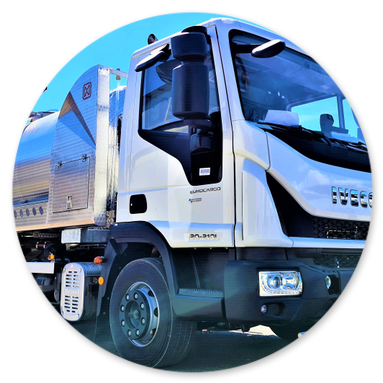

Canal Jet and Street Washer
The Canal Jet is for all customers whose work involves professional washing and cleaning sewage systems.
The Canal Jet creates a high-pressure water jet through a nozzle on a flexible hose, making it easy to break down solid deposits and wash out septic tanks and sewage pipes.
We can build tanks in carbon steel and stainless steel (optional external flowered finish on request).
Tank capacities range from 1,000 to 20,000 litres.
We can mount the Canal Jet on a chassis with 2, 3 or 4 axles, or on a dumper truck.
The high-pressure pump is usually driven by a PTO mounted on the engine, but when the Canal Jet is mounted on a dump bed, the movement of the pump is aided by an auxiliary motor, making it versatile and self-governing.
Our wide range of high-pressure pumps allows our customers to choose the one that is best suited to their specific working requirements.
You can order the following pumps:
• high pressure water pump 18.4 kW (25 HP)
capacity: 45 lt/1’, 61 lt/1’, 70 lt/1’, 100 lit/1’;
pressure: 210 bar, 150 bar, 130 bar, 100 bar.
• high pressure water pump 26.6 kW (36 HP)
capacity: 80 lt/1’, 115 lt/1’, 139 lt/1’, 142 lit/1’;
pressure: 175 bar, 120 bar, 100 bar, 100 bar.
• high pressure water pump 41 kW (56 HP)
capacity: 110 lt/1’, 145 lt/1’, 183 lt/1’, 226 lit/1’,
pressure: 250 bar, 200 bar, 160 bar, 140 bar.
• high pressure water pump 56 kW (76 HP)
capacity: 194 lt/1’, 240 lt/1’, 290 lt/1’, 345 lit/1’, 405 lt/1’;
pressure: 300 bar, 240 bar, 200 bar, 165 bar, 140 bar.
• high pressure water pump 79 kW (107 HP)
capacity: 171 lt/1’, 211 lt/1’, 267 lt/1’, 330 lit/1’, 395 lt/1’;
pressure: 240 bar, 210 bar, 155 bar, 125 bar, 100 bar.
• high pressure water pump 112 kW (150 HP):
capacity: 194 lt/1’, 240 lt/1’, 290 lt/1’, 345 lit/1’, 405 lt/1’;
pressure: 300 bar, 250 bar, 200 bar, 170 bar, 150 bar.
Standard fittings are: level indicator, upper manhole, suction system and high-pressure water jet to reels, hydraulic swivelling rear reel with flexible 80 m hose, manual auxiliary reel with flexible 20 m x ½’’ hose, high-pressure washing gun, circular side bodies with doors for hose storage, mudguards and mud flaps for rear wheels, yellow rotating beacon, set of cleaning nozzles.
Optional fittings By request, we can provide a large variety of other fittings including: hydraulic auxiliary reel, hydraulic rear reel for 80 m x 1” flexible hose instead of swivelling reel, hydraulic lobe discharge pump with capacities from 200 l/1’ to 2700 l/1’, street-cleaning system connected to discharge pump or to piston pump, front bar spray nozzles of different calibres for different uses.
